Descrizione

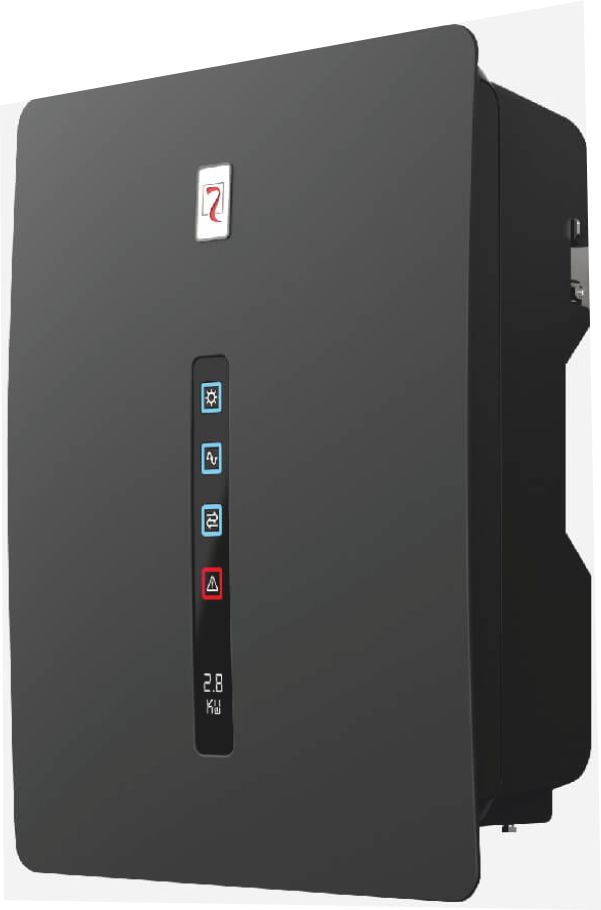

Inverter monofase 4.0
INGRESSO:
Potenza DC minima [W] 3200
Potenza DC massima [W] 4600
Tensione massima d’ ingresso [V] 600
Tensione d’ ingresso nominale [V] 360
Corrente massima d’ ingresso [A] 26 (13 per MPPT)
Corrente massima di cortocircuito [A] 30 (15 per MPPT)
Massimo numero di stringhe PV 2 (1/1)
Numero di MPPT 2
USCITA:
Potenza attiva AC (nominale) [W] 4000
Potenza attiva max. AC (PF=1) [W] 4400
Corrente max. d’ uscita AC [A] 19.1
Tensione nominale AC [V] 220 / 230 L+N+PE
Comunicazione Wi-Fi integrato (a doppio canale), RS485 (opzionale)
Dimensioni (LxPxA): 367x135x467mm
